How can I tell what the specs are on this connector so I can replace it? I need both the male and female sides. Do any of the numbers around the connector tell what it is?
It connects the PCB to a AAA battery compartment. Forgot that the batteries were left in and they caused corrosion.
Also, what is the best way to clean up the PWB?
Thanks
This topic was modified 1 year ago 3 times by GPag
2 Answers
0
18/12/2024 5:48 am

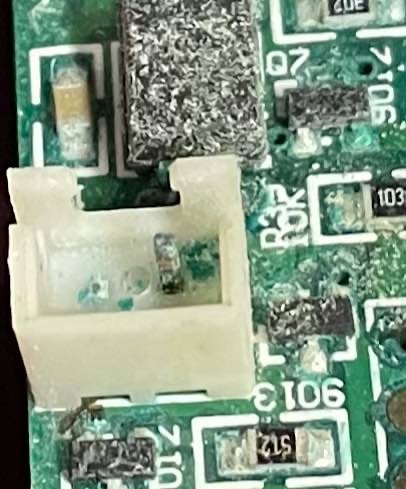

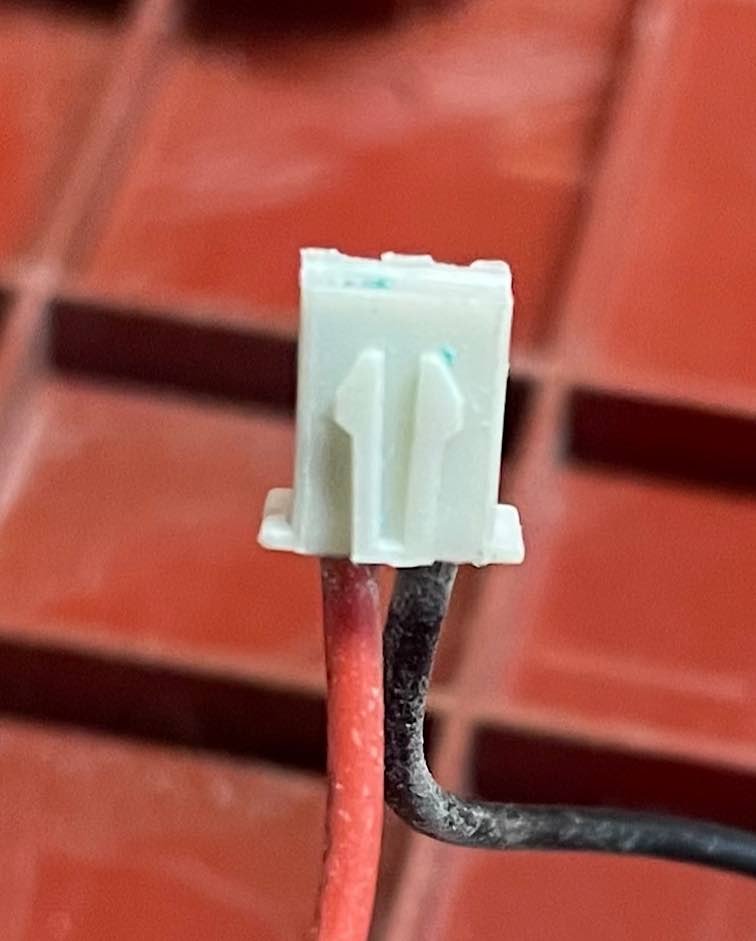

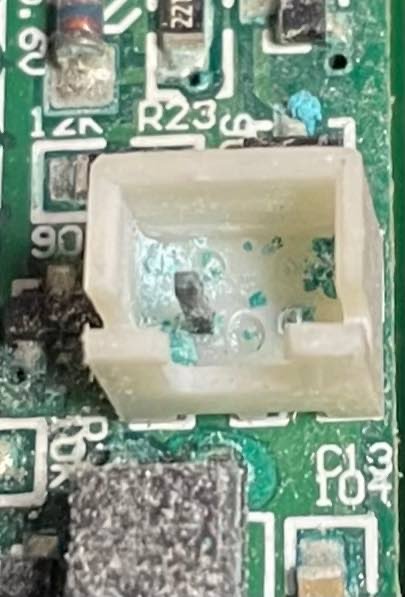

From the images you provided, the connector looks like a JST PH 2-pin connector:
- Pin Count: Your connector has 2 pins.
- Pitch (Pin Spacing): The spacing between the pins is likely 2.0 mm, which matches the JST PH series specification.
- Shape and Latch: The rectangular plastic housing and latch design are typical of JST PH connectors.
To replace:
Female Side (Cable): Search for “JST PH 2.0mm 2-Pin Female Connector with Wires” (pre-assembled).
Male Side (PCB): Look for “JST PH 2.0mm 2-Pin Male Header” to solder onto the PCB.
Alright, that mess on the board? Totally fixable. You can try this:
- Grab some isopropyl alcohol (the stronger, the better – like 90%+).
- Find a soft toothbrush (or anything soft-bristled). No need to get aggressive here; gentle scrubbing works best.
- Dip the brush in alcohol and start scrubbing off the gunk.
- For really stubborn spots, just pour a bit of alcohol directly onto the area – it’ll help loosen everything up.
- Let it dry completely. Like, bone dry. Don’t rush and power it back on while it’s still damp – bad things will happen!
- Once it’s all dry, take a closer look. Check for any broken traces or damage. If everything looks clean and intact, you’re good to go.
If you want a quick visual guide on cleaning corroded PCBs, this video tutorial does a great job:
How to Clean Battery Corrosion Off a PCB
